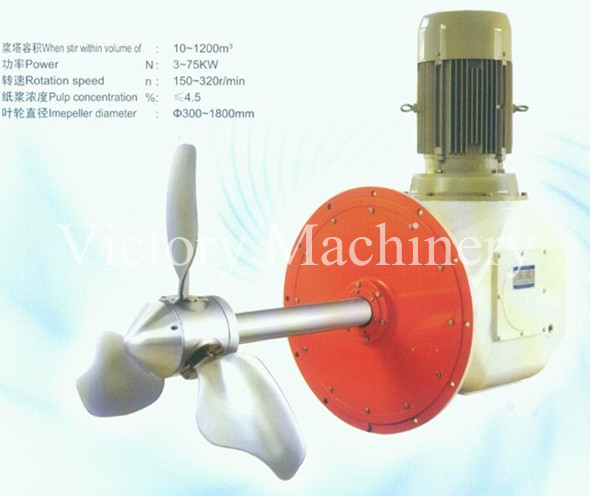

Application: designed for all kinds of fibers in chests or storage towers up to a consistency of 6.5%.
1.Main Features:
1) Materials:All the parts connected with the medium are made of stainless steel.
2) Blades:The agitator blades can be easily adjusted to meet different needs.
3) Guide Plate:A strong guide plate protects the shaft and improves mixing efficiency and avoids the entanglement of
impurities as well.
4) Sleeve:Shat protection sleeve prevents shaft from wearing and corrosive.
5) Drive:Belt transmissions easily and steady and be used tensioner fixed pulleys and easily assemble and disassemble.
6) Foundation: For most sizes agitator(dia.≤1300mm)is fixed on the wall of the chest and no nees of foundation.
7) Avaliable Seals:The seal casing can be equipped with several eal types to meet the requirements of different applications.
Packing can be replaced from the outside without emptying the chest.
2.Technical Data:
Item
|
Dia of impeller(mm)
|
Min speed(rpm)
|
Max speed(rpm)
|
Max Power(kw)
|
Motor speed(rpm)
|
Weight(kg)
|
1
|
600
|
320
|
400
|
11
|
1000
|
380
|
2
|
800
|
220
|
308
|
15
|
1000
|
400
|
3
|
1000
|
184
|
260
|
30
|
1000
|
800
|
4
|
1300
|
165
|
200
|
55
|
1000
|
980
|
5
|
1600
|
120
|
180
|
75
|
1500
|
1600
|
6
|
2000
|
80
|
130
|
110
|
1500
|
2280
|
